PCE-VA 20 MULTIFUNCTION ANEMOMETER

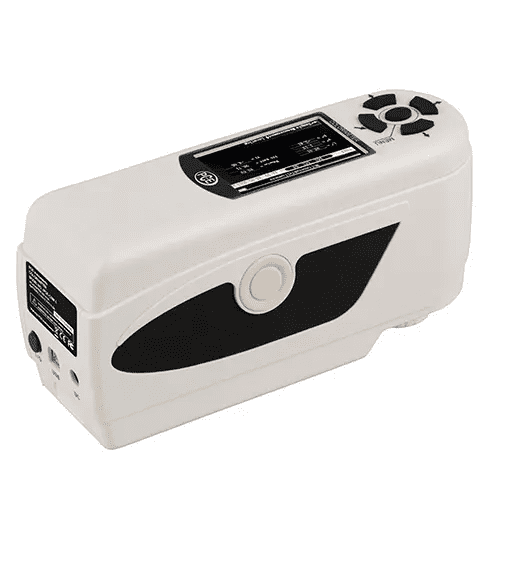

PCE-CSM 3 COLOR TEST INSTRUMENT

The PCE-CSM 3 color meter, offered by NGS Technology, is designed for precise quality control and delivers highly accurate color readings. Users can select between different color spaces, including CIE LabCh and CIE Lab*. After performing a measurement, the result can be saved as a reference value. Subsequent readings can be stored as samples and easily compared to any of the 100 reference values stored in the device.

Key features: – Supports CIE LabCh and CIE Lab* color spaces
– 8°/diffused (d) measuring geometry
– White calibration included
– Stores up to 100 reference values and 20,000 sample readings
– 8 mm measuring aperture

Compare
Add to wishlist
Category: Tag:
Description

The PCE-CSM 3 color test instrument, developed for quality control applications, delivers exceptionally high accuracy and reliability. Offered by NGS Technology, this user-friendly device allows selection between various color spaces, including CIE LabCh and CIE Lab*.

Once a measurement is taken, it can be saved as a reference value, with subsequent readings stored as samples for easy comparison. In addition to providing precise color space coordinates, the device also calculates and displays the deviation between the reference and sample values.

The color meter supports storage of up to 100 reference values and 20,000 samples directly on the device. Measured data can be transferred to a PC via the built-in USB interface, and dedicated PC software is included for convenient data analysis and management.

Key Features:

– Supports CIE LabCh and CIE Lab* color spaces
– White calibration functionality
– Reference and sample measurement capabilities
– 8 mm measuring aperture
– Rechargeable lithium-ion battery
– High measurement accuracy
– User-friendly operation
– Includes PC software for data transfer and analysis

Distributed by NGS Technology, this advanced color meter is a reliable solution for professional color quality control.

Reviews (0)

Reviews

There are no reviews yet.

Be the first to review “PCE-CSM 3 COLOR TEST INSTRUMENT”

Your email address will not be published. Required fields are marked *

Shipping & Delivery

MAECENAS IACULIS

Vestibulum curae torquent diam diam commodo parturient penatibus nunc dui adipiscing convallis bulum parturient suspendisse parturient a.Parturient in parturient scelerisque nibh lectus quam a natoque adipiscing a vestibulum hendrerit et pharetra fames nunc natoque dui.

ADIPISCING CONVALLIS BULUM

  • Vestibulum penatibus nunc dui adipiscing convallis bulum parturient suspendisse.
  • Abitur parturient praesent lectus quam a natoque adipiscing a vestibulum hendre.
  • Diam parturient dictumst parturient scelerisque nibh lectus.

Scelerisque adipiscing bibendum sem vestibulum et in a a a purus lectus faucibus lobortis tincidunt purus lectus nisl class eros.Condimentum a et ullamcorper dictumst mus et tristique elementum nam inceptos hac parturient scelerisque vestibulum amet elit ut volutpat.

Related products

PCE-VT 3800S VIBRATION ANALYZER/ ACCELEROMETER
Compare

PCE-VT 3800S VIBRATION ANALYZER/ ACCELEROMETER

The accelerometer from NGS Technology is the perfect tool for assessing vibrating parts, machines, and systems. Equipped with an external vibration sensor, it can accurately measure vibration displacement up to 3.9 mm, vibration velocity up to 399.9 mm/s, and vibration acceleration up to 399.9 m/s².

Measuring ranges: – Acceleration: 0.0 … 399.9 m/s² / 0.0 – 15744 in/s²
– Velocity: 0.00 … 399.9 mm/s / 0.00 – 15.74 in/s
– Displacement: 0.000 … 3.9 mm / 0.000 – 0.154 in
– Automatic ISO 10816-3 evaluation

Additional features: – Data Logger: 50 memory locations with 43,200 measured values each
– Rechargeable Battery
– Color Graphic Display
– Measuring Tip with Handgrip

Add to wishlist
Read more
Quick view
p37
Compare

PCE-CS 1000N FORCE TEST INSTRUMENT

PCE-CS 1000N Digital Force Test Instrument – NGS Technology

The PCE-CS 1000N is a digital, electronic, battery-powered force test instrument designed for precise measurement in both kilograms (kg) and pounds (lbs). Factory-calibrated for accuracy, it comes complete with a hook, shackle, and remote control.

  • Maximum Capacity: 1000 kg / 2200 lbs (1 Ton)

  • Resolution: 0.2 kg

  • Tare Range: Up to 100% of full scale

This high-performance force gauge is available through NGS Technology, your trusted source for reliable measurement solutions.

Add to wishlist
Read more
Quick view
p36-1
p36-2
Compare

PCE-CT 27FN THICKNESS TEST INSTRUMENT

PCE-CT 27FN Thickness Test Instrument by NGS Technology

The PCE-CT 27FN is a non-destructive coating thickness tester designed for accurate measurement of non-magnetic coatings, insulating layers, and dry film thickness (DFT) on metal substrates such as steel and aluminum. This versatile instrument is ideal for surface analysis, automotive paint inspection, materials testing, and manufacturing quality control.

  • Measuring Range: 0 … 1250 µm / 0 … 50 mils

  • Accuracy: ±(2% + 2 µm) / ±(2% + 0.1 mils)

  • Resolution: 0.1 µm / 0.1 mils

Developed by NGS Technology, this device offers high precision and reliability for professionals across multiple industries.

Add to wishlist
Read more
Quick view
PCE-VT 3700S VIBRATION ANALYZER/ ACCELEROMETER
PCE-VT 3700S VIBRATION ANALYZER/ ACCELEROMETER
Compare

PCE-VT 3700S VIBRATION ANALYZER/ ACCELEROMETER

د.إ0.00

The accelerometer from NGS Technology is perfect for maintenance workers to quickly assess vibrating parts, machines, and systems. It displays vibration acceleration, vibration velocity, and vibration displacement directly on the screen. The measurement unit can be toggled between the metric system and imperial units.

Measuring Ranges: – Acceleration: 0.0 – 399.9 m/s² / 0.0 – 15744 in/s²
– Velocity: 0.00 – 399.99 mm/s / 0.00 – 15.74 in/s
– Displacement: 0.000 – 3.9 mm / 0.000 – 0.154 in
– Colored Graphic Display

Add to wishlist
Add to cart
Quick view
p35-3
p35-1
Compare

PCE-322A SOUND TEST INSTRUMENT

The PCE-322A is a handheld, portable, professional Class II sound level meter (decibel meter) designed for precise noise measurement. With built-in data logging capabilities, the PCE-322A is ideal for both real-time sound monitoring and long-term noise exposure assessment over extended periods.

Now offered by NGS Technology, this reliable instrument provides the following features:

– Sound measuring range: 30 to 130 dB
– Resolution: 0.1 dB
– Accuracy: ±1.4 dB
– Memory capacity: Up to 32,700 readings
– Sampling rate: 2 measurements per second

Perfect for environmental noise assessments, workplace safety evaluations, and industrial noise monitoring.

Add to wishlist
Read more
Quick view
p38
Compare

PCE-VA 20 MULTIFUNCTION ANEMOMETER

The PCE-VA 20 is a versatile multifunction anemometer designed to measure a variety of environmental conditions, including wind speed, temperature, and humidity. It is ideal for applications such as testing and monitoring heating, ventilation, and air conditioning / cooling (HVAC) systems. This all-in-one thermometer-hygrometer-anemometer features a 10 cm (3.9″) fan impeller and a bright, backlit LCD screen for easy readability.

Key features include data hold, average/maximum/minimum value display, automatic shutdown, low-battery indicator, and selectable metric or imperial units.

Measurement Capabilities: – Air velocity, air volume flow, relative humidity, air temperature, dew point, and wet-bulb temperature
– Air velocity range: 0.2 to 30 m/s (39.4 to 5905.5 fpm)
– Accuracy: ±(1.5% of measured value + 0.3 m/s) for velocities below 20 m/s,
±(3% of measured value + 0.3 m/s) for velocities above 20 m/s
– Resolution: 0.1

Distributed and supported by NGS Technology, the PCE-VA 20 offers reliable performance for both professional and industrial use.

Add to wishlist
Read more
Quick view
PCE-PH-12_Sensor_701x700
PCE-PH-12_Sensor_701x700
Compare

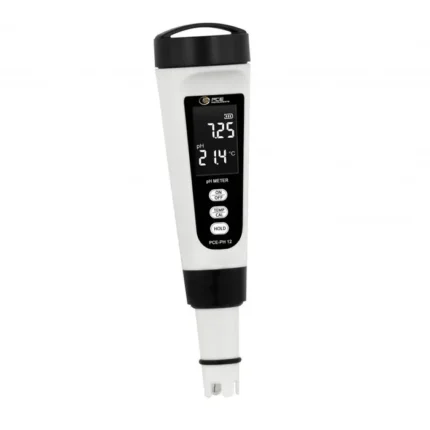

PCE-PH 12 PH Meter (Copy)

د.إ0.00
The PCE-PH 12 pH Meter from NGS Technology is a compact and user-friendly device designed for quick and accurate measurement
Add to wishlist
Add to cart
Quick view

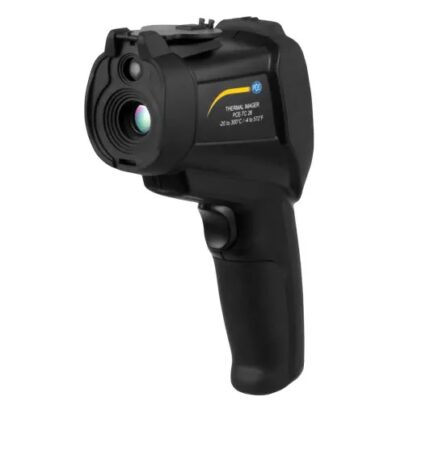

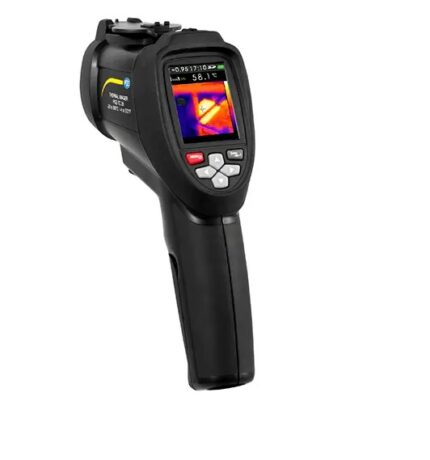

PCE-TC 28 THERMOGRAPHY TEST INSTRUMENT
